Crawler Dozers

D61EXi/PXi-24

Automated dozing from rough cut to finish grade

The D61EXi-24 / D61PXi-24 comes with a fully factory installed 3D Global Navigation Satellite System (GNSS) Machine Control system. Add-on components for machine control typically mounted on the blade are now replaced with a factory installed cab top GNSS antenna, an enhanced inertial measuring unit (IMU+), and with stroke sensing hydraulic cylinders. This integrated sensor package is robust and accurate. It eliminates the daily hassles of installing and removing antennas and cables from the blade, and the wear associated with it.
Get the brochure
Engine Power
126/169 kW/HP
Blade Capacity
3,4-3,8 m³
Blade Size
3,86 × 1,16 (PAT) m x m
Operating Weight
18,6-19,6 t.

Get more information about the D61EXi/PXi-24

Get quote
Get parts
Compare
“With iMC 2.0 - the original and best machine control system just got better!”
“With iMC 2.0 - the original and best machine control system just got better!”
Intelligent Machine Control features iMC 2.0
intelligent Machine Control
Intelligent Machine Control features iMC 2.0

Are you constantly looking for improving your productivity and your efficiency?

Discover
Powerful
Komatsu Crawler Dozer
Powerful

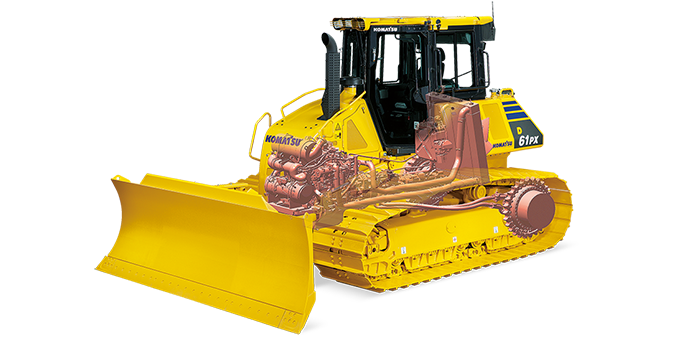

The hydrostatic drive line is a key factor in the performance of the D61-24 dozer. It supplies high drawbar pull when needed and a highly fuel efficient drive line for grading and precision work. With a choice between two operating modes, the operator can select either “quickshift” or “variable speed” to match a complete range of applications in the most economic and easy way.



First-Class Comfort
First-Class Comfort

Operator comfort is essential for safe and productive work. The cab on the D61i-24 is quiet and comfortable, an ideal environment to concentrate on the job. Its hexagonal design and large tinted glass windows offer excellent panoramic visibility. The high capacity and fully automatic climate control system pressurises the cab to keep dust out. A high quality sound-absorbent lining covers the interior to minimise noise levels for the operator.

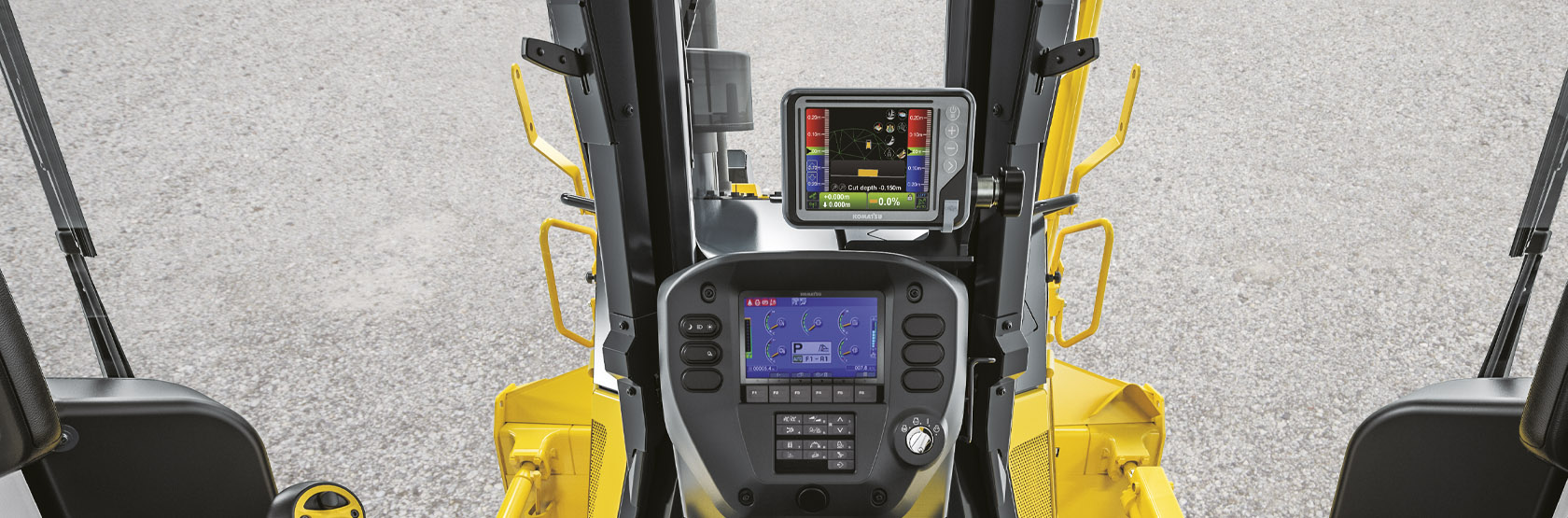

intelligent Machine Control / Standard touchscreen control box: Factory installed and features simple, easy-to-use operator interface. Mounted high for excellent visibility, viewing angle is adjustable per operator preference.

Safety First
Komatsu Crawler Dozer
Safety First
A super slant nose gives the D61-24 the best visibility of any dozers on the market. This unique feature dramatically increases efficiency and jobsite safety, with operators now always having full view of both the blade and the ripper and of objects close to them. The new cab-forward design, with integrated ROPS/FOPS and large glass windows, provides more room and places the operator closer to the blade, further improving visibility and comfort.
Environmentally Friendly
Komatsu Crawler Dozer
Environmentally Friendly
The Komatsu EU Stage V engine is productive, dependable and efficient. With ultra-low emissions, it provides a lesser environmental impact and a superior performance to help reduce operating costs and lets the operator work in complete peace of mind.
intelligent Dozers
This content is hosted on an external platform, which will only display if you accept targeting cookies. Please enable this type of cookies to view this content.
Cookie Settings
intelligent Machine Control
intelligent Dozers

Komatsu intelligent dozers can perform in automatic mode from rough dozing to high-precision finish grading. Add-on components for machine control typically mounted on the blade are now replaced with a factory installed cab top GNSS antenna, an enhanced inertial measuring unit (IMU+), and with stroke sensing hydraulic cylinders. No more daily hassles to install and remove antennas and cables.

Learn more about Intelligent Machine Control

Easy Maintenance
Komatsu Crawler Dozer
Easy Maintenance

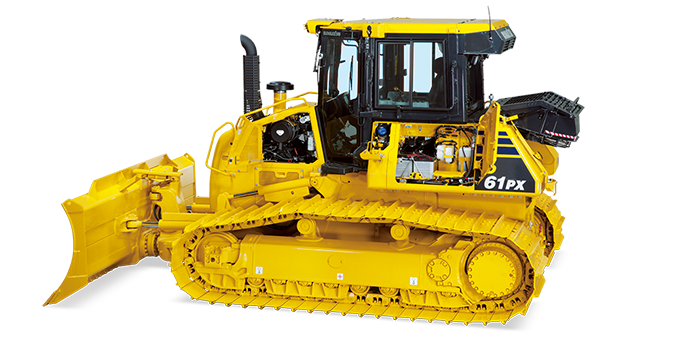

Well located service doors allow convenient and safer ground access to daily service points. With the radiator located at the rear of the machine, engine fuel and oil filters can be easily accessed from the front of the engine compartment. Remote grease points facilitate lubrication of the C-frame pivots and angle cylinder bearing.
KOMTRAX and Komatsu Care
Komtrax™ is Komatsu’s state of the art wireless monitoring system. It gives you an easy way to track your machines, monitor their performance and stay up to date about the status of your equipment. Knowledge gained from KOMTRAX saves you time and maximises your profits.

Komatsu CARE™ is a maintenance program that comes as standard with your new Komatsu machine. It covers factory-scheduled maintenance, performed with Komatsu Genuine parts by Komatsu-trained technicians.
Environmental data
Environmental data

Komatsu has committed to halving CO2 emissions from 2010 levels by 2030 and we will work to achieve net zero CO2 emissions (carbon neutrality) from our production activities by 2050. In addition, we will deploy the relevant technologies at material suppliers and other partners to help them also achieve carbon neutrality in their operations.
