Rigid Dump Trucks

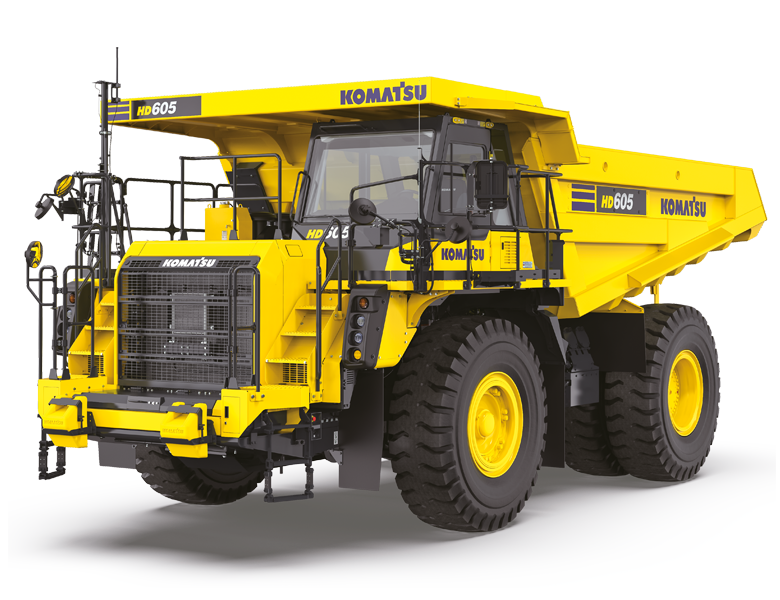

HD605-10

Maximized productivity

With the increased power and payload capacity the Komatsu HD605-10 rigid dump truck is designed to offer maximized productivity with low operation costs.

High performance 610 kW Komatsu Engine
Expanded load capacity up to 64 tonnes with 43 m³ body
Large retarder capacity achieves both high productivity and safety
Smallest turning radius in class
Improved operator comfort and safety with: Full LED lights, Waiting brake, Throttle lock (Cruise control), Hill start assist, Brake performance check, Seat belt reminder with external lamp and 4-point seat belt (Optional)

Get the brochure

Komatsu Rigid Dump Trucks

Auto Retard Speed Control (ARSC)

Auto Retard Speed Control (ARSC) allows to easily set a constant downhill travel speed and lets the operator concentrate on steering. Speed can be adjusted appropriately to the slope grade at an increment of 1 km/h by clicking the control lever (± 5 km/h max.). HD605-10 has a new function of setting different speed by truck load status.

Komatsu Rigid Dump Trucks

Small turning radius

The MacPherson strut type front suspension has a special A-frame between each wheel and the main frame. The wider space created between the front wheels and the main frame increases the turning angle of the wheels. The larger this turning angle, the smaller the turning radius of the truck.

Komatsu Rigid Dump Trucks

First-Class Comfort

The wide Komatsu SpaceCab™ with user-friendly controls provides a comfortable and safe work environment. A fully adjustable airsuspended seat dampens vibrations and reduces the fatigue of long shifts. Large front and electric side windows give a superior visibility and increased confidence.

Hydro-pneumatic suspension
Low-noise design
Heated & ventilated air-suspended seat
4-point seat belt (Optional)

Komatsu Rigid Dump Trucks

Enhanced driver assist features

Improved operator comfort with new intelligent driver assist initiatives that seamlessly merge driver and machine.

Throttle lock/Cruise control: Enhances operator comfort during long hauls.

Hill start assist: Anti-roll-back system prevents unwanted reverse travel in slope operations.

Dumping light function: Activates rear work lights and camera during dumping, ensuring safe and smooth operations in low-light conditions.

Waiting brake: Automatic brake engagement when parking the truck.

Komatsu Rigid Dump Trucks

Large LCD colour monitor

Large LCD colour monitor: A large user-friendly colour monitor enables safe, accurate and smooth work. Multilingual and with all essential information available at a glance, it features simple and easy-to-operate switches and multifunction keys that provide fingertip access to a wide range of functions and operating information.

Komatsu Rigid Dump Trucks

Payload meter (PLM)

The Payload meter (PLM) manages the payload of each hauling cycle and analyzes the truck’s production volume and working conditions for a specific period. Loaded weight is displayed in real time, both on the cab’s monitor and by external display lamps. HD605-10 has a new function of overload speed limit and alarm to prolong truck life by ensuring correct payload.

Komatsu Rigid Dump Trucks

Safety first

Safe cab access thanks to the low angle of the front stairways with handrails, slip-resistant.

Speed limiter: Maximum travel speed is limited independently for both empty and loaded conditions

Antilock brake system (ABS) (optional): This system prevents the tires from locking when using the service brake and the retarder, thus minimizing skidding under slippery conditions.

Guided brake performance check: On screen instructions for the operator through the process. With data log and reminder functionality.

Full LED lights: LED head lights and fog lights. LED front and rear combination lights. LED access lights and engine room lights, with ground level switches. LED side and rear working lights with dumping light function.

Seat belt reminder with external lamp complies with local site safety regulations with factory-installed options.

Machine lockout/tagout for maintenance. The hydraulic lock, battery and started disconnect switches can be locked with personal lock to prevent unwanted machine access and startup.

Komatsu Rigid Dump Trucks

Easy maintenance

Ground access battery box and battery disconnect switch: For easy and safe daily check and service work, the battery box and battery disconnect switch are both accessible from ground level.

Maintenance-free batteries: High-capacity batteries requiring no maintenance

Centralized greasing points: Greasing points are located accessible from ground level to make daily maintenance easier.

Centralized arrangement of filters and service points: All service items are centralized so that they can be serviced easily

Plastic wheel chocks: Light weight but strong wheel chocks can be easily and comfortably handled by any operator.

Komtrax Plus continuously monitors your machine’s settings, condition, fuel usage and performance along with operating practices. This comprehensive data set is designed to help prolong your quarry and mining machine’s life, improve its efficiency and optimise production levels and costs.

Komatsu CARE™ is a maintenance program that comes as standard with your new Komatsu machine. It covers factory-scheduled maintenance, performed with Komatsu Genuine parts by Komatsu-trained technicians.

Environmental data

Komatsu has committed to halving CO2 emissions from 2010 levels by 2030 and we will work to achieve net zero CO2 emissions (carbon neutrality) from our production activities by 2050. In addition, we will deploy the relevant technologies at material suppliers and other partners to help them also achieve carbon neutrality in their operations.
