Mini Excavators

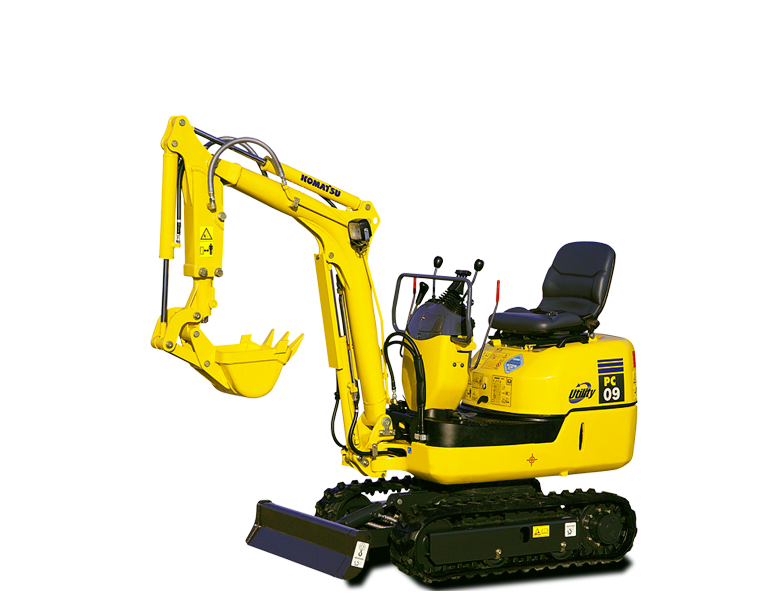

PC09-1

Extremely compact

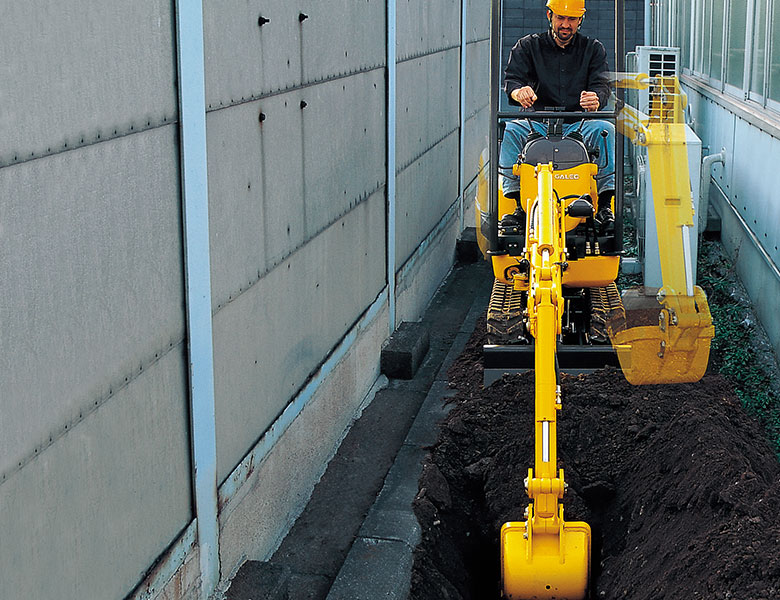

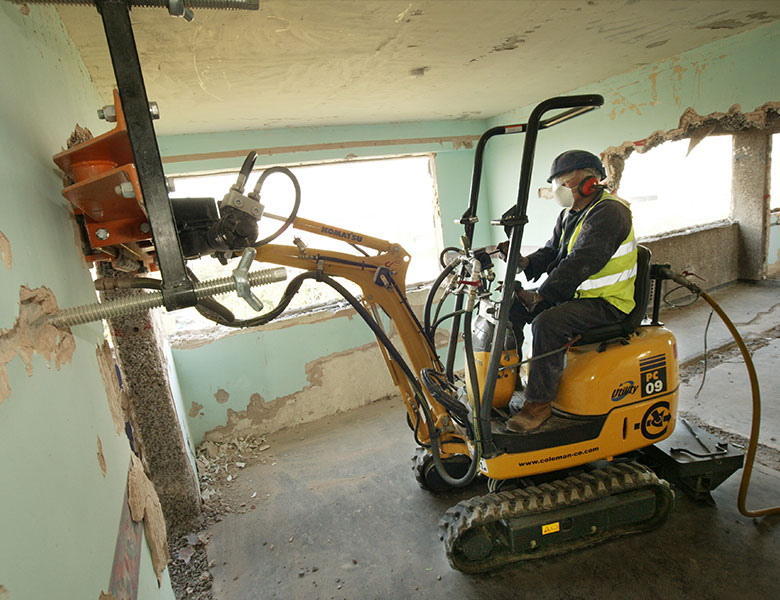

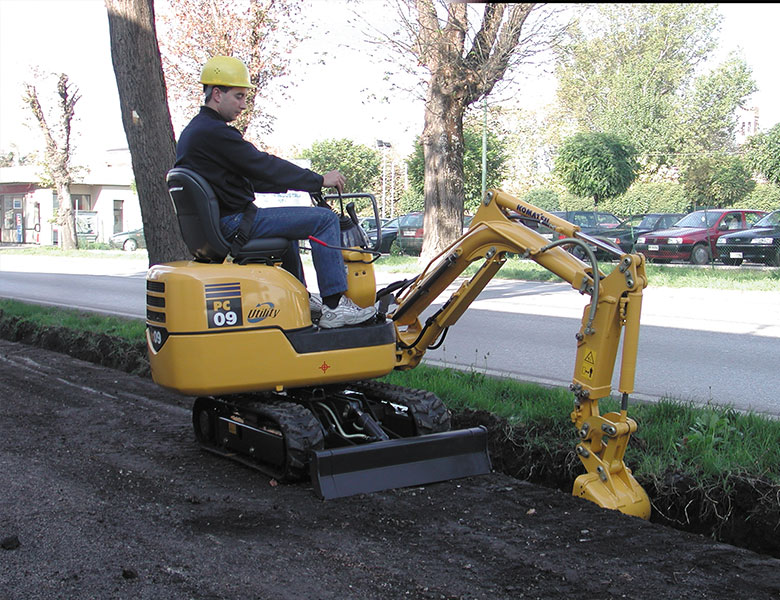

The PC09-1 micro-excavator has exactly the right power and digging force for operating in tight spaces: ideal inside buildings, for small demolition work, to set plants or install an irrigation system in a garden, and, in general, on any job site where a bigger machine can’t work or even be transported to.
Get the brochure
Engine Power
6,8/9,1 kW/HP
Bucket Capacity
0,016-0,025 m³
Digging Depth
1,47 m
Operating Weight
0,88-1,08 t.
Productivity
Mini-Excavators
Productivity
Thanks to its cutting edge hydraulic system, all movements - even when combined - are smooth and shock-free for maximum precision, in any application. The PC09-1 is a perfect mix of the care that a manual worker can bring to a job and of an excavator’s high performance. It makes any job much easier and quicker to finish.
Safety
Mini-Excavators
Safety

Safe and environmentally friendly PC09-1 micro-excavator is the result of the competence and technology that Komatsu has acquired over 100 years. It was designed and developed with constant attention to the needs of customers from all over the world.

  • Safety lock lever
  • Recycle-oriented design
  • Low noise levels
Variable width undercarriage
Mini-Excavators
Variable width undercarriage
For applications requiring maximum versatility in terms of size and stability, the PC09-1 is equipped with a hydraulic undercarriage extension operated from the driver’s seat via a dedicated control. This feature allows the operator to quickly switch from maximum stability for digging, to a reduced width of less than one meter to easily drive through narrow passages or doors.
Operability
Mini-Excavators
Operability

Several technical solutions give the PC09-1 increased sturdiness and operability. The cast body offers extreme rigidity and robustness, and the metal bonnet guarantees a longer life and lower repairing costs in the event of a collision. A special tubular boom with no welding houses all hydraulic hoses and protects them from possible damage while allowing complete visibility of the digging area.

Maintenance
Mini-Excavators
Maintenance

Easy maintenance

  • Easy access to all inspection points
  • Full opening bonnet
  • Long interval greasing
Environmental data
Environmental data

Komatsu has committed to halving CO2 emissions from 2010 levels by 2030 and we will work to achieve net zero CO2 emissions (carbon neutrality) from our production activities by 2050. In addition, we will deploy the relevant technologies at material suppliers and other partners to help them also achieve carbon neutrality in their operations.
