Mini Excavators

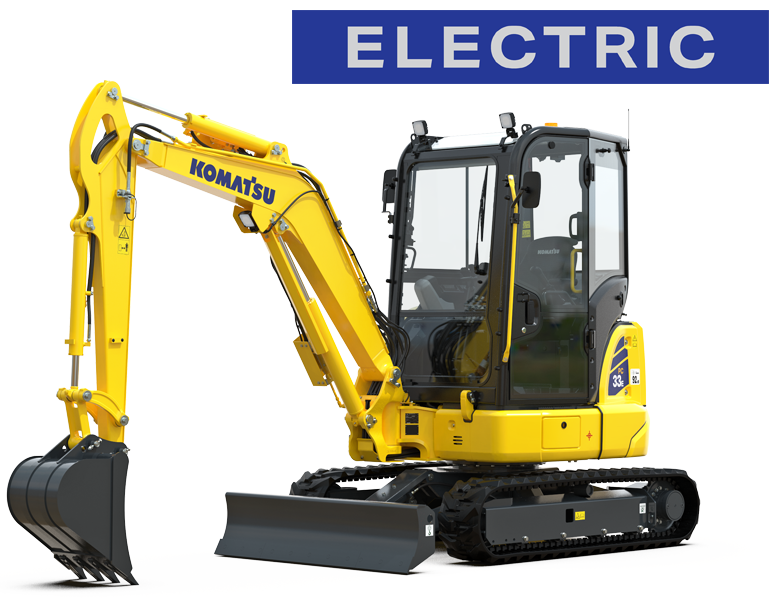

PC33E-6

Electric Komatsu powertrain

Responding to the rising concern for global climate change, Komatsu has taken the initiative to invest all the knowledge and experience we acquired over the past century into developing solutions that can help move the construction industry towards carbon neutrality. The Komatsu PC33E-6 offers a powerful electric system, first-class comfort, and versatility.

Get the brochure
Engine Power
17,4/ kW/HP
Bucket Capacity
0,03-0,1 m³
Operating Weight
3,62 t.
Powerful electric system
Mini-Excavators
Powerful electric system
  • Electric Komatsu powertrain
  • 17.4 kW Komatsu electric motor
  • 35 kWh Komatsu battery pack
  • Long life battery design
  • Fast battery charge (20 to 100%) in 1.6 h
  • High voltage (115 V) architecture
  • Increased lifting capacity: +40% over side (vs. PC30MR-5)
  • Short tail design: 1020 mm tail swing radius
Total versatility
Mini-Excavators
Total versatility

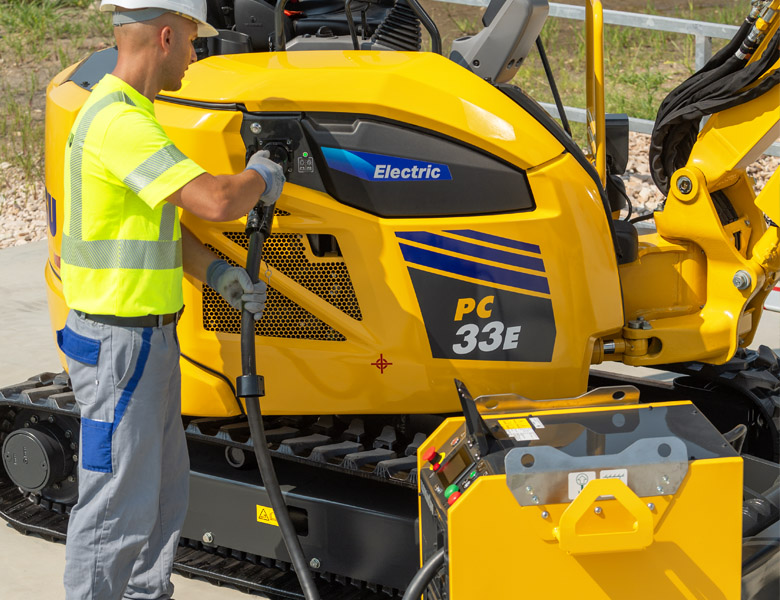

  • Off-board 400 V fast charger
  • Proportional control for attachments
  • Adjustable attachment oil flow (option)
  • Possibility to use market compatible hydraulic attachments
First-class comfort
Mini-Excavators
First-class comfort
  • Air-suspended operator seat
  • Multi-function monitor with redesigned interface for electric excavators
  • Charging status information at a glance
  • Machine controls are same as Internal Combustion Engine machines (ICE) and offer familiar working behaviour
Environmentally friendly
Mini-Excavators
Environmentally friendly
  • Zero local emissions
  • Optimal for indoor use or to work outside of standard working hours
  • Participate in low-carbon projects
  • Support customers’ environmental obligations
  • Significantly lower noise and vibration levels(vs. PC30MR-5)
  • CO2 reduction equivalent of its own weight(vs. PC30MR-5 over 1 year)
Safety
Mini-Excavators
Safety
  • Heavy-duty, protected electric components
  • High-safety LFP lithium battery design
  • ROPS (ISO 3471) / OPG (ISO 10262)level 1 canopy
  • LED working lamps
  • Dual lock system for PPC controls through neutral position detection
  • Secondary engine shutdown switch
  • Seat belt caution indicator
Easy maintenance
Mini-Excavators
Easy maintenance
  • Air cooled maintenance-free electric motor and inverter
  • Reduced daily check and periodical maintenance items
  • Komatsu E-support programme
  • New electric powertrain components with a 5 years warranty
  • Tilt-up floor for easier service access
E-support
Mini-Excavators
E-support

E-Support is a support program that comes as standard with your new Komatsu PC33E-6 electric mini excavator.
