Komatsu Europe introduces the new K100 boom change system for PC490HRD-11
Published on 7/14/2021

Change machine configuration in minutes, from inside the cab.

Vilvoorde, July 2021 — With the introduction of the new K100 boom change system for its PC490HRD-11 high reach demolition machine, Komatsu Europe offers customers a new level of demolition project efficiency. The K100 boom change system allows you to reconfigure the machine within minutes, without leaving the operator cab, so the most effective attachment can be used at every stage of the project.

With the introduction of the patented K100 boom change system, we believe that our customers can fully benefit from the versatility built in to every Komatsu HRD machine



“Listening to demolition contractors showed us that the industry is looking for a significant improvement in efficiency.” says Simon Saunders, Working Gear Product Marketing Manager at Komatsu Europe. “At Komatsu, we took up this challenge, asking ourselves how to translate our own capabilities into the best business benefits for our customers.” He adds: “With the introduction of the patented K100 boom change system, we believe that our customers can fully benefit from the versatility built in to every Komatsu HRD machine, enhance site safety, and reduce project time.”

With a total of six different working configurations, from the 32 m extended high reach through the powerful 28 m high reach to the medium reach and digging equipment, the PC490HRD‑11 already offers a wide range of configurations, ready to handle any part of a demolition project.
The K100 boom change system makes these wide ranging capabilities significantly more accessible. There is no need to manually handle any heavy hydraulic hoses or to carry out any manual work at height when changing the machine’s configuration. Used to its maximum effect, the K100 system could even allow the PC490HRD-11 to carry out both primary demolition as well as site clearance, perhaps even removing an extra machine from the site.

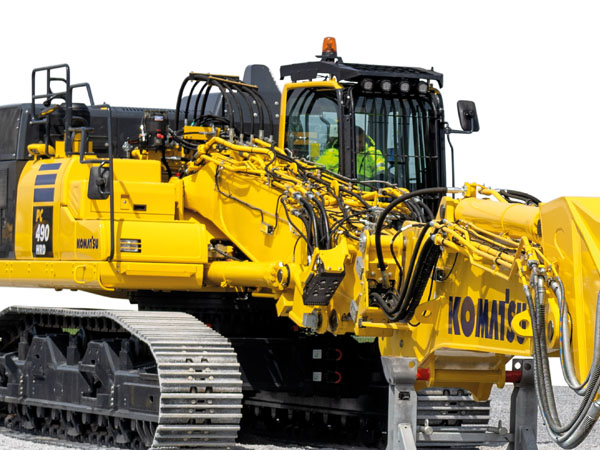

Komatsu’s New K100 boom change system

With relatively few changes to the structure of the well-known PC490HRD-11, the K100 builds on proven durability and adds new in-house Komatsu Group technology with highly visual graphical controls, operating in compliance with ISO safety regulations.
The operator cab of a machine with the K100 system looks very similar to that of the  conventional boom change machine. All the controls of the K100 system are incorporated within the Human/Machine Interface (HMI) panel, which doubles up as the working range indicator system in normal use. The HMI panel offers instructional animations as well as a built-in view from the alignment camera so that the operator is fully aware of the machine’s condition at all times. No additional monitors are needed, ensuring the view from the operator cab remains uninterrupted.

Equipped with the K100 boom change system, the machine’s operating weight ranges from 62105 kg up to 75830 kg, depending on the working configuration.
The machine is able to handle a range of demolition attachments, from 2500 kg in the maximum 32 m extended high reach arrangement, up to 3350 kg in the common 28 m high reach arrangement, up to 5000 kg for the digging or medium height arrangements, giving a huge range of available power / reach.
Hydraulic performance of the K100 system is similar to the machine with the conventional boom change system, ensuring you can make full use of the various working configurations available.
The standard safety and fleet management equipment fitted to the PC490HRD-11 are retained with the K100 boom change system, with the Neutral Detection System, Komatsu Care, KomVision and Komatsu’s telematic system Komtrax all featuring in the standard specification.

PC490HRD-11 K100 system – New features and benefits

  • NEW – Maximum convenience
    No need for external help for boom change process.
    No need for access ladder or platform.
    No need to remove additional counterweight.

  • NEW – Unrivalled versatility
    Change boom configuration in minutes, without getting out of the cab.
    Use one machine for all tasks on demolition site.
    2500 kg attachment capacity with 32 m extended high reach configuration.

  • NEW – operating costs
    Save costs of extra machine and operator for site clearance & support work.
    Change machine configuration without working at height – no need to return to depot for configuration change.
    Reduce machine into smaller sections for transport

  • NEW – Simple-to-use control software
    Attractive graphical touch screen operator interface.
    Step by step guidance on screen.
    Built-in camera view for equipment alignment.
    Combined monitor panel to maximise view from window.


    See the video on youtube at :  https://www.youtube.com/watch?v=FY3PiSc3vVE

    About Komatsu
    Komatsu is an industry-leading manufacturer and supplier of equipment, technologies and services for the construction, forklift, mining, industrial and forestry markets. For nearly a century, Komatsu equipment and services have been used by companies worldwide to develop modern infrastructure, extract fundamental minerals, maintain forests and create technology and consumer products. The company’s global service and distributor networks support customer operations, tapping into the power of data and technology to enhance safety and productivity while optimizing performance.

    Information in this news release is current on the date of the announcement and is subject to change without notice.
    Note: Komatsu Care and Komtrax are registered trademarks of Komatsu Ltd
