Product Archive
Crawler Dozers

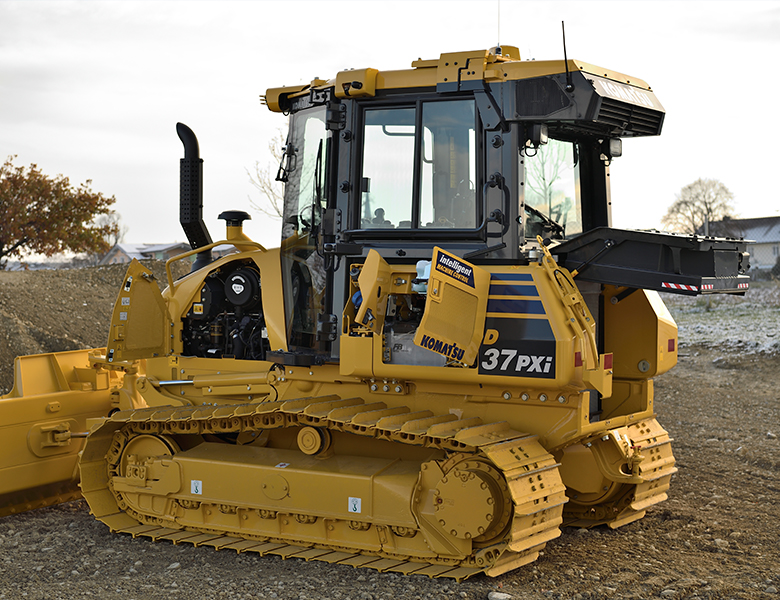

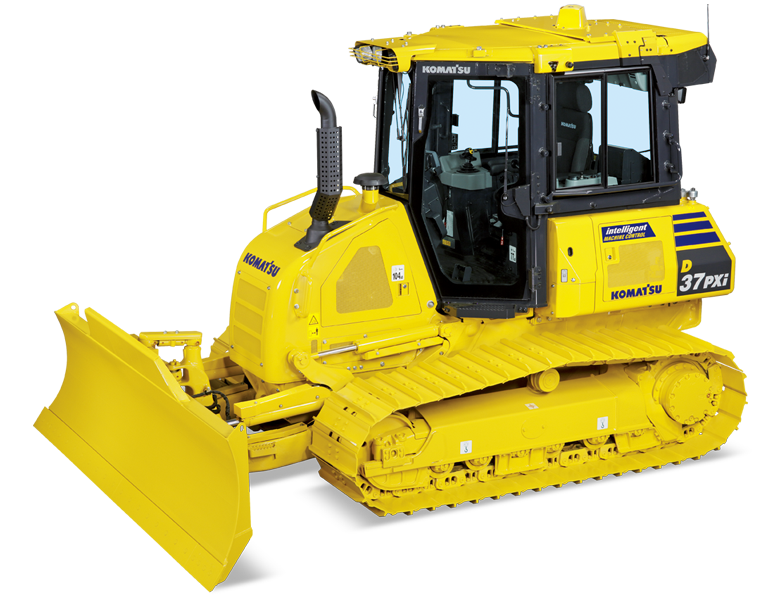

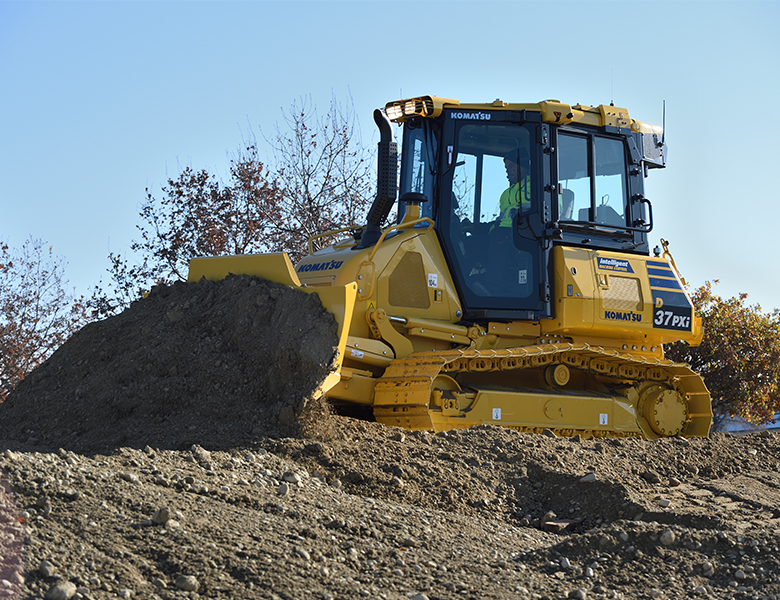

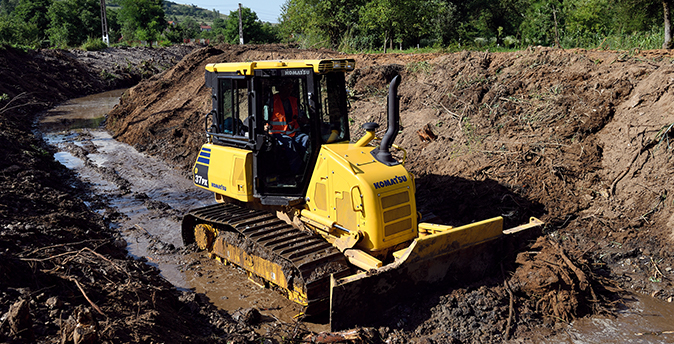

D37EXi/PXi-24

Unique automated dozing from rough cut to finish grade

The D37EXi-24 / D37PXi-24 Dozer is a compact, versatile and powerful dozer that is easily transported between different job sites. Thanks to the factory integrated 3D GNSS machine control system, the machine can get to work immediately when it arrives at the work site, with no risk of damage or incorrect installations.
Get the brochure
Engine Power
67,7/90,7 kW/HP
Blade Capacity
1,91-2,13 m³
Blade Size
3,20 × 0,84 (INPAT) m x m
Operating Weight
9,1-9,4 t.
Powerful
Komatsu Crawler Dozers
Powerful

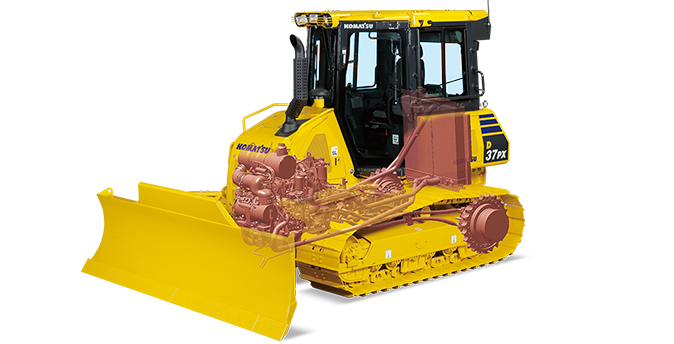

The hydrostatic drive line is a key factor in the performance of the D37-24 dozer. It supplies high drawbar pull when needed and a highly fuel efficient drive line for grading and precision work. With a choice between two operating modes, the operator can select either “quickshift” or “variable speed” to match a complete range of applications in the most economic and easy way.
First-Class Comfort
First-Class Comfort

Operator comfort is essential for safe and productive work. The cab on the D37i-24 is quiet and comfortable, an ideal environment to concentrate on the job. Its hexagonal design and large tinted glass windows offer excellent panoramic visibility. The high capacity and fully automatic climate control system pressurises the cab to keep dust out. A high quality sound-absorbent lining covers the interior to minimise noise levels for the operator.

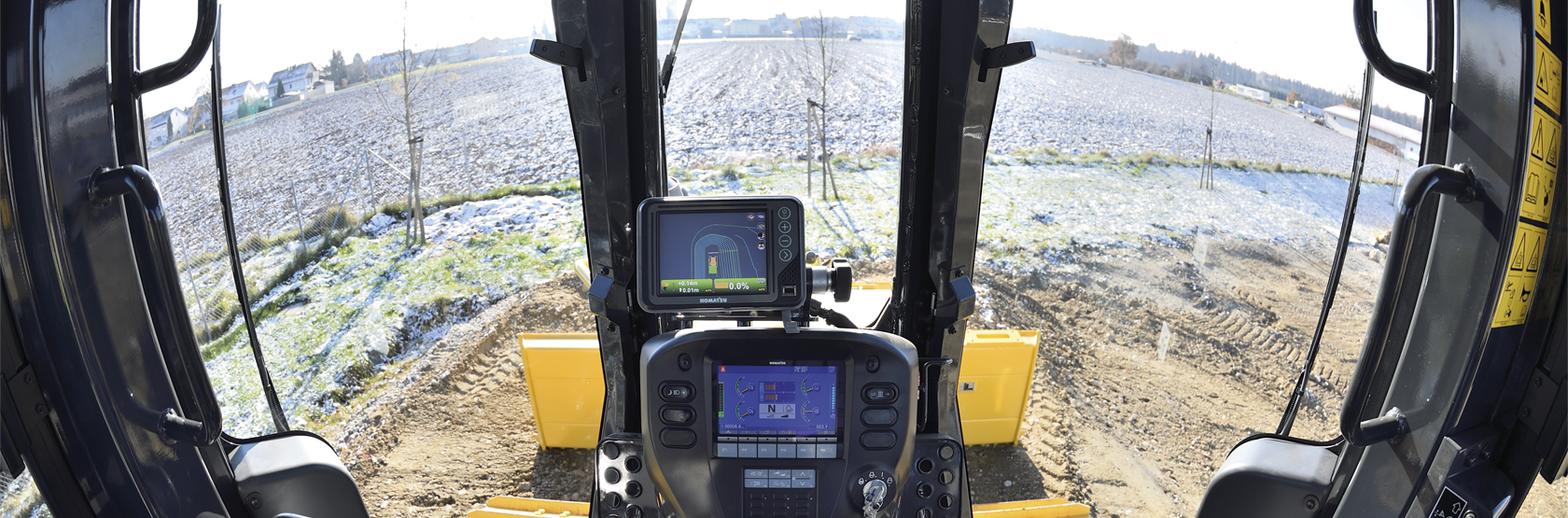

intelligent Machine Control / Standard touchscreen control box: Factory installed and features simple, easy-to-use operator interface. Mounted high for excellent visibility, viewing angle is adjustable per operator preference.

Safety First
Komatsu Crawler Dozers
Safety First
A super slant nose gives the D37-24 the best visibility of any dozers on the market. This unique feature dramatically increases efficiency and jobsite safety, with operators now always having full view of both the blade and the ripper and of objects close to them. The new cab-forward design, with integrated ROPS/FOPS and large glass windows, provides more room and places the operator closer to the blade, further improving visibility and comfort.
Intelligent Dozers
logo_imc
intelligent Machine Control
Intelligent Dozers

Komatsu intelligent dozers can perform in automatic mode from rough dozing to high-precision finish grading. Add-on components for machine control typically mounted on the blade are now replaced with a factory installed cab top GNSS antenna, an enhanced inertial measuring unit (IMU+), and with stroke sensing hydraulic cylinders. No more daily hassles to install and remove antennas and cables.

Learn more about Intelligent Machine Control

Environmentally Friendly
Komatsu Crawler Dozers
Environmentally Friendly
The Komatsu EU Stage IV engine is productive, dependable and efficient. With ultra-low emissions, it provides a lesser environmental impact and a superior performance to help reduce operating costs and lets the operator work in complete peace of mind.
Easy Maintenance
Komatsu Crawler Dozers
Easy Maintenance

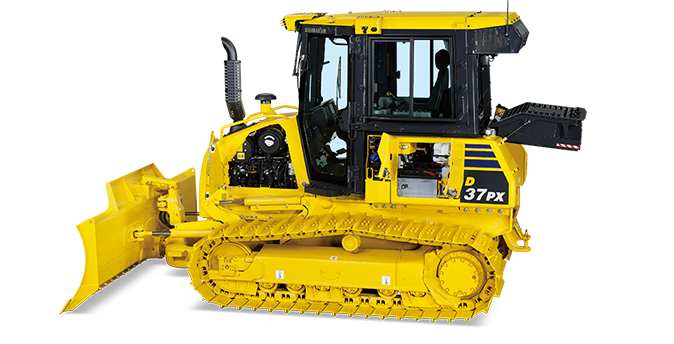

Well located service doors allow convenient and safer ground access to daily service points. With the radiator located at the rear of the machine, engine fuel and oil filters can be easily accessed from the front of the engine compartment. Remote grease points facilitate lubrication of the C-frame pivots and angle cylinder bearing.



KOMTRAX and Komatsu Care
Komtrax™ is Komatsu’s state of the art wireless monitoring system. It gives you an easy way to track your machines, monitor their performance and stay up to date about the status of your equipment. Knowledge gained from KOMTRAX saves you time and maximises your profits.

Komatsu CARE™ is a maintenance program that comes as standard with your new Komatsu machine. It covers factory-scheduled maintenance, performed with Komatsu Genuine parts by Komatsu-trained technicians.
