Product Archive
Wheeled Midi Excavators

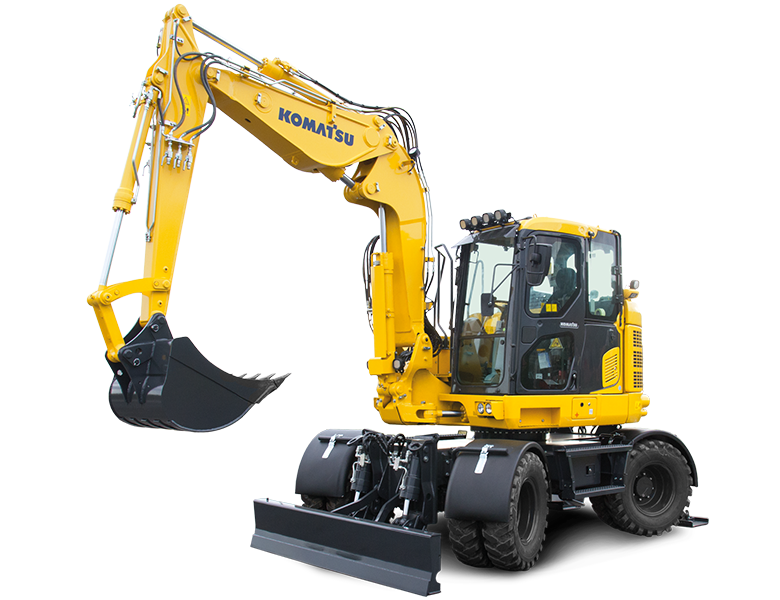

PW118MR-11

Perfect match between size and performance

Sturdy and stable, the Komatsu PW118MR-11 Wheeled Excavator features a class-leading compact size. A special combination of power, complete control and convenient dimensions make it an ideal choice for heavy duty lifting applications or simple excavating tasks in narrow alleys, on road-construction sites and for sewer-construction work.

  • EU Stage IV emissions compliant
  • 6 working modes
  • 4WS and CRAB steering
  • Quick coupler line
  • Fuel refilling pump
  • Viscous fan clutch
  • Auto-idle shutdown
  • Proportional control joysticks
  • 8 working halogen lights + beacon
  • KOMVISION
Get the brochure
Engine Power
72,6/97,3 kW/HP
Bucket Capacity
0,4 m³
Digging Depth
4,33 m
Operating Weight
12,88-13,9 t.
Powerful and environmentally friendly
Midi-Excavators
Powerful and environmentally friendly
With operating weights ranging from 12.800 kg to 13.900 kg, the PW118MR-11 is powered by a Komatsu SAA4D95LE-7 engine, EU Stage IV compliant, with a net horsepower of 72,5 kW (97,2 HP) @ 2.050 rpm.
Operator Comfort
PW118MR-11
Midi-Excavators
Operator Comfort

A comfortable work environment further helps to maximise productivity.

A high-resolution 7” TFT-LCD widescreen colour monitor features enhanced capabilities and displays information in 25 languages for global support. It provides information on AdBlue® fluid level, Eco guidance, operational records, fuel consumption history and utilisation information.

Versatility
Komatsu PW148-11 wheeled excavator
Midi-Excavators
Versatility
A heavy counterweight is now integrated in the PW118MR-11 as standard, with no extension of tail protrusion. Stability is increased by 13%, lifting capacity is optimised and higher than for the previous model - and operations are safer.
Manoeuvrability
PW118MR-11
Midi-Excavators
Manoeuvrability

The PW118MR-11 operational concept puts full control of the machine at the operator’s fingertips. For outstanding versatility and manoeuvrability, new dashboard switches allow to quickly change between 2 Wheels Steering, 4 Wheels Steering, and Crab modes, and to activate/deactivate the auto axle lock.

  • F/B/R (Front-Both-Rear) switch on the left lever for undercarriage – For a faster blade/stabilizers selection
  • F/N/R (Forward-Neutral-Reverse) switch – Easier change of direction.

KomVision
KomVision

With a series of high definition networked cameras fitted on the machine, KomVision provides a crystal clear, real-time bird’s eye view of the immediate surroundings on the widescreen cab monitor. The driver can quickly and easily check the machine’s vicinity prior to making any movements.

Find out more
6 working modes
Komatsu PW148-11 wheeled excavator
Midi-Excavators
6 working modes

The operator can also easily select up to six working modes to match machine performance to the application.

  • The “Attachment Economy” mode can be used even with powered attachments and it further contributes to lower fuel consumption and emissions.
Travel performance
PW118MR-11
Midi-Excavators
Travel performance
The all-new cruise control function helps to eliminate operator fatigue when travelling mid-to-long distances for more comfort and safety. Any operator can easily find a perfect driving position and settings. Reduced power loss in the travel system and a revised hydraulic layout improve speed and acceleration, both on flat ground and on slopes.
Komtrax™ is Komatsu’s state of the art wireless monitoring system. It gives you an easy way to track your machines, monitor their performance and stay up to date about the status of your equipment. Knowledge gained from KOMTRAX saves you time and maximises your profits.
