WA500-8 Stone Handler
WA500-8 Stone Handler
WA500-8 Stone Handler
WA500-8 Stone Handler
Wheel Loaders

WA500-8 Stone Handler

Block Handling

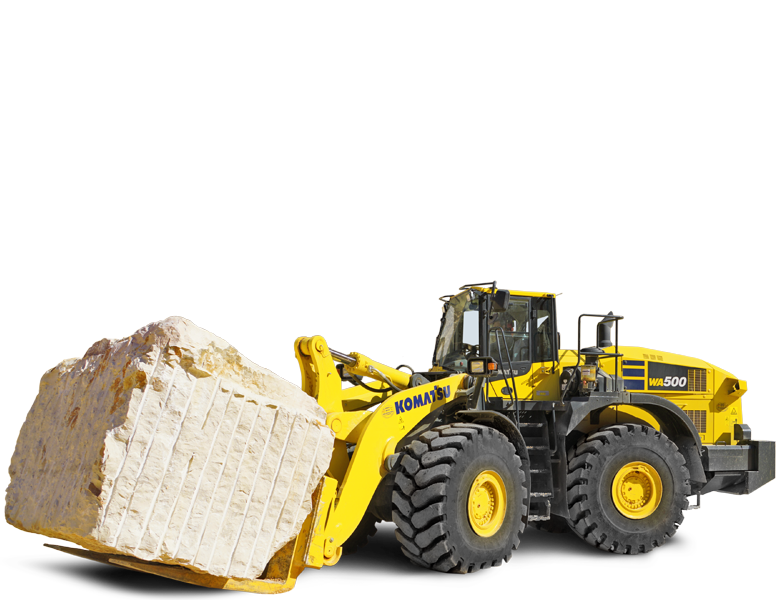

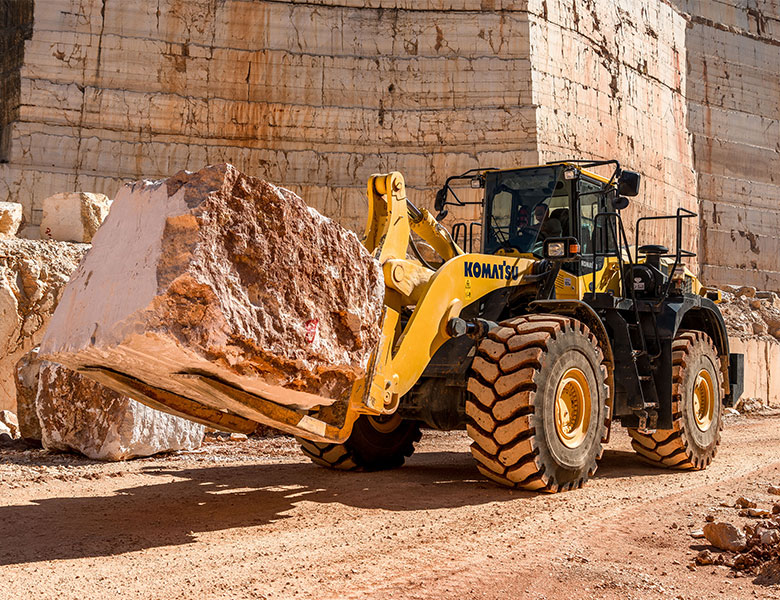

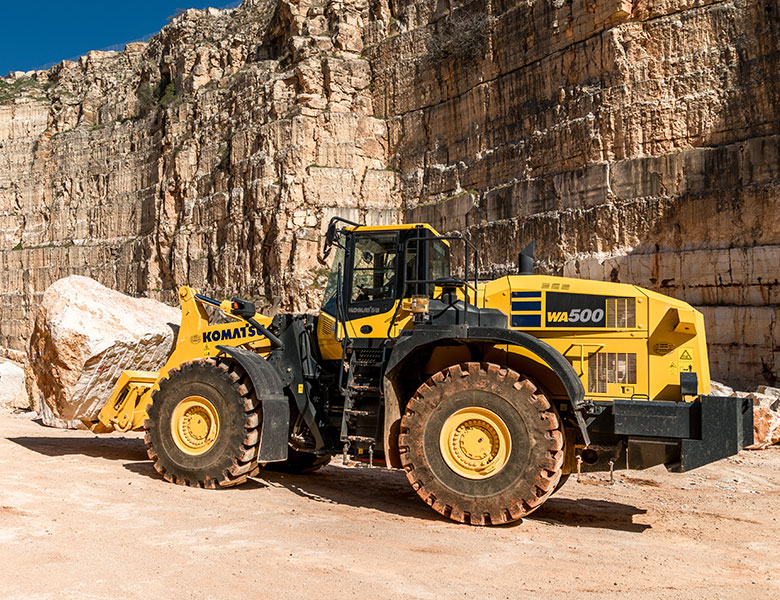

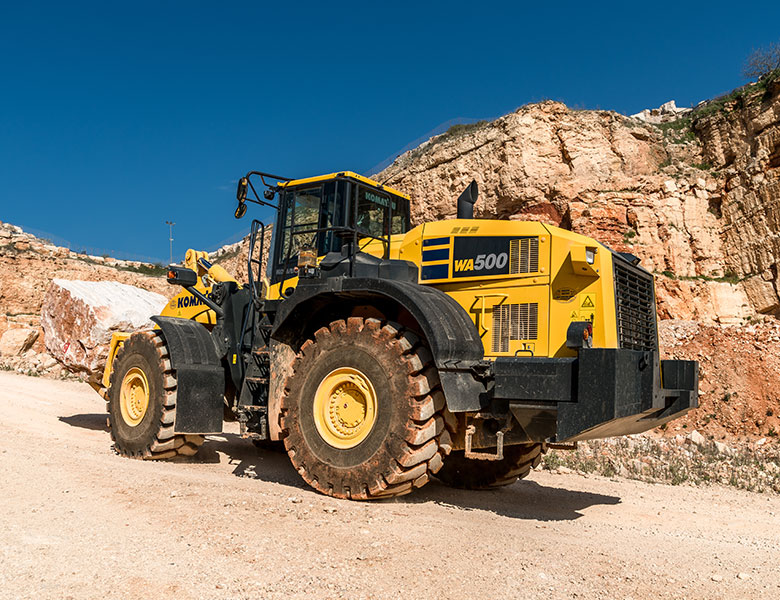

For efficient operations, stone handling requires robust machinery. Komatsu wheel loaders are well-known for their exceptionally strong design, and their long service life even when working under the toughest conditions. The Komatsu WA500-8 in its stone handling specification perfectly adapts to the special requirements of this application. The combination of the modified base machine with a wedge type quick coupler and a specially designed stone fork ensures optimum kinematics for daily work. Special buckets are available on request, and hydraulic modifications to the base machine allow higher loads. In addition, reinforced axles, an axle oil cooling system and additional counterweights provide a package that meets the application requirements.

Get the brochure
Engine Power
266/357 kW/HP
Tipping Load
26 t.
Operating Weight
38,145 t.

Get more information about the WA500-8 Stone Handler

Get quote
Get parts

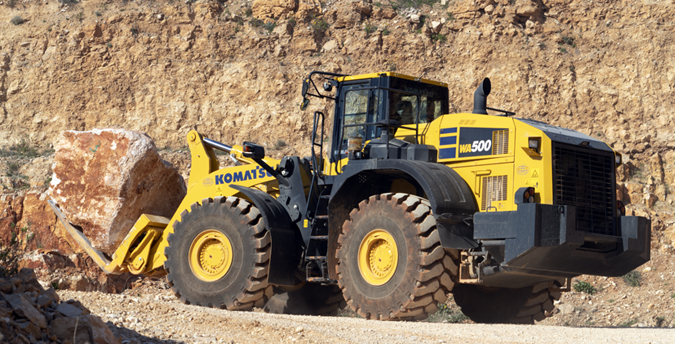

Productivity
Wheel-Loaders
Productivity

Powerful and Environmentally Friendly

  • EU Stage V engine
  • Komatsu SmartLoader Logic
  • Large-capacity torque converter with standard lock-up

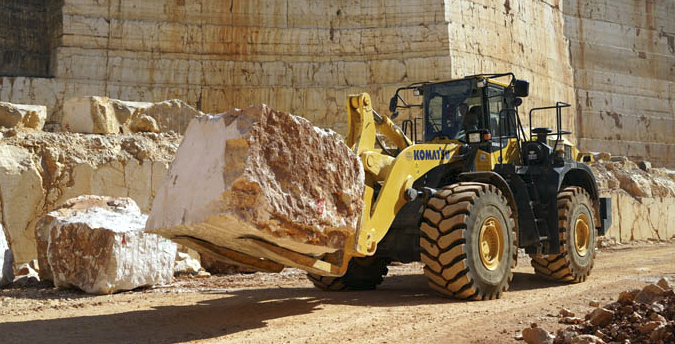

Safety
Wheel-Loaders
Safety
  • 4 - point seat belt as option
  • Rear view camera
  • Front window cleaning steps
  • 2 -  point operator cab door

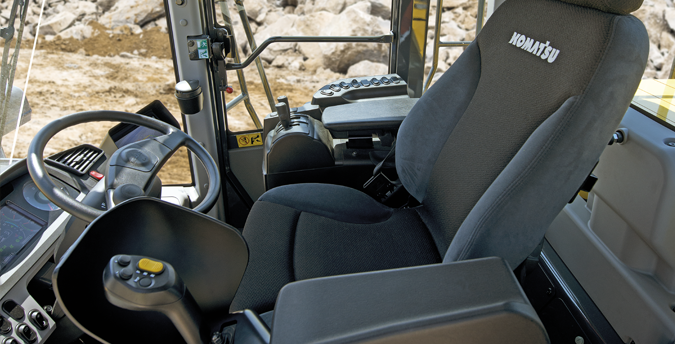

Comfort
Wheel-Loaders
Comfort

First-Class Comfort

  • New, air-suspended operator seat
  • Large multifunctional monitor
  • Low-noise design
  • Rear-view camera system

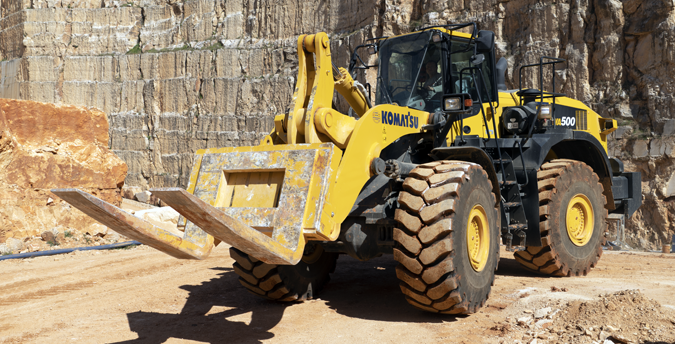

Stone handling equipment
Wheel-Loaders
Stone handling equipment
  • 21 or 26 ton version
  • Stone forks
  • Wedge type quick coupler
  • Electro-hydraulic lock for quick coupler (no 3rd circuit required)
  • Electronically controlled load stabilizer (ECSS II) (21 ton version only)

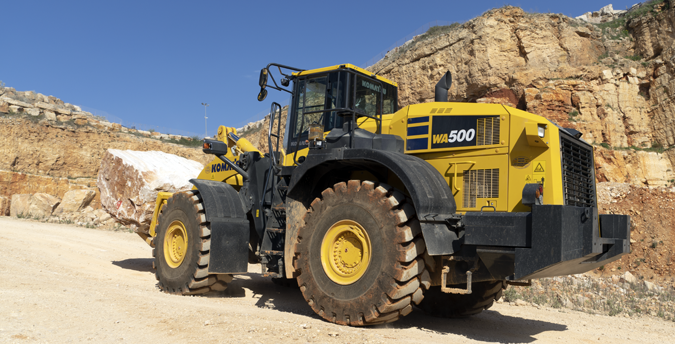

Modifications and enhancements of this machine
Wheel-Loaders
Modifications and enhancements of this machine
  • Heavy counterweight (4.975 kg)
  • Reinforced axles
  • Axle oil cooling system
  • Reinforced center hinge pin
  • Reinforced front frame
  • Larger steering cylinders
  • Adjusted hydraulic system (26 ton version only)

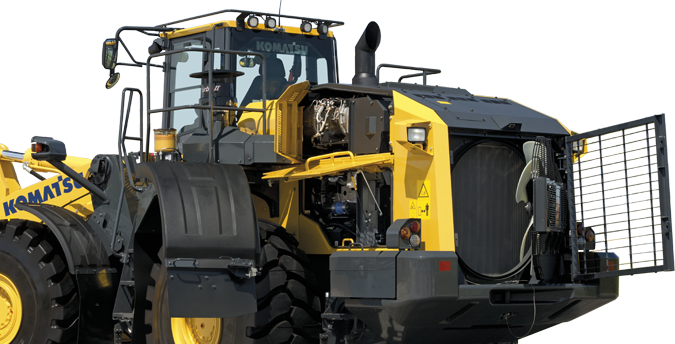

Maintenance
Wheel-Loaders
Maintenance
  • Wide-core radiator with auto reverse fan
  • Improved gull-wing type engine doors
  • Factory fitted automatic lubrication system

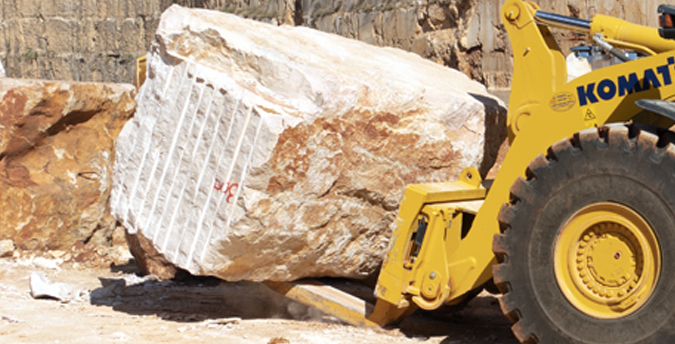

Buckets and Attachments
Wheel-Loaders
Buckets and Attachments
  • High efficiency universal bucket
  • Rock bucket
  • Stock pile bucket with raised bottom
  • Wedge type heavy du hydraulic quick-coupler
KOMTRAX and Komatsu Care
Komtrax™ is Komatsu’s state of the art wireless monitoring system. It gives you an easy way to track your machines, monitor their performance and stay up to date about the status of your equipment. Knowledge gained from KOMTRAX saves you time and maximises your profits.

Komatsu CARE™ is a maintenance program that comes as standard with your new Komatsu machine. It covers factory-scheduled maintenance, performed with Komatsu Genuine parts by Komatsu-trained technicians.
Environmental data
Environmental data

Komatsu has committed to halving CO2 emissions from 2010 levels by 2030 and we will work to achieve net zero CO2 emissions (carbon neutrality) from our production activities by 2050. In addition, we will deploy the relevant technologies at material suppliers and other partners to help them also achieve carbon neutrality in their operations.
